DESCRIPTION

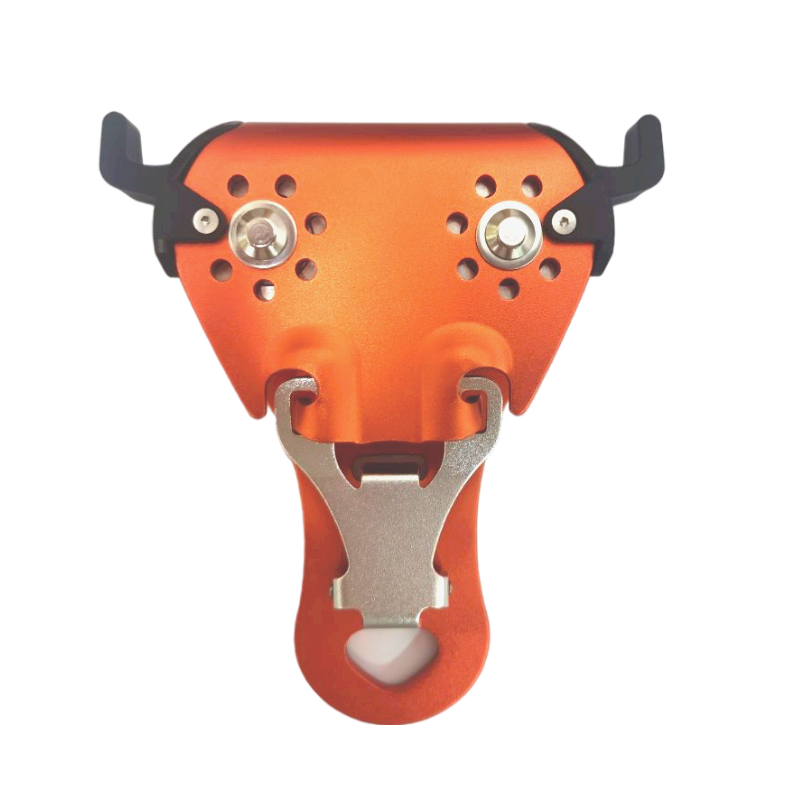

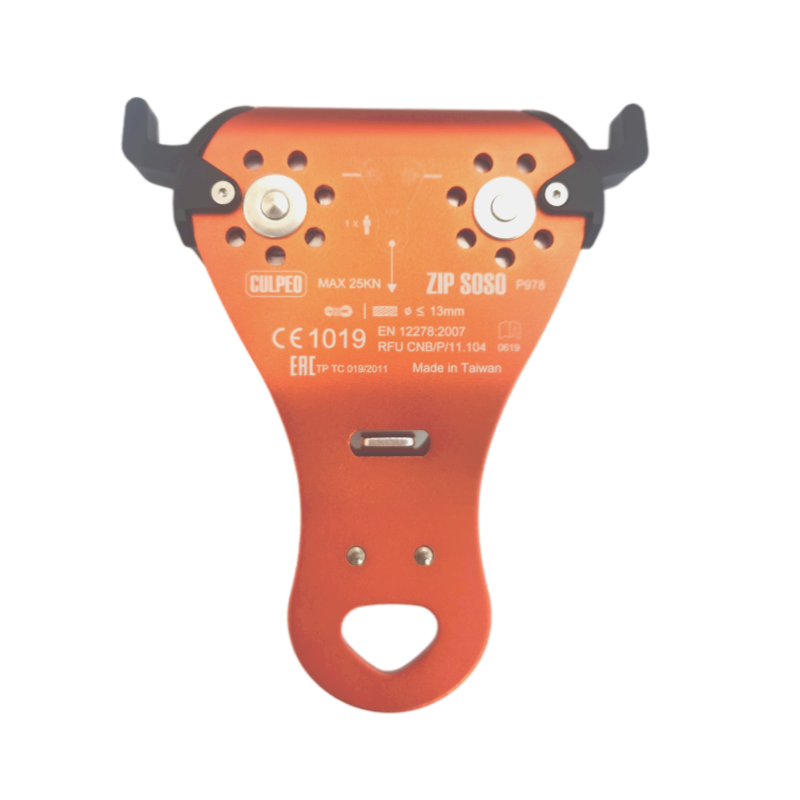

The personal protective equipment called “CULPEO SOSO P978”(fig. 1) , is a pulley with fixed flange and two in line sheaves, in compliance with the EN 12278:2007 standard, suitable to set up multiple hauling and perform cable car movements.

In addition, its compliance with RFU CNB/P/11.104 makes this pulley a mobile connection device suitable to use – as a part of the individual safety system for the protection against falls from a height -- in high rope courses defined in the EN 15567-1 standard.

NOMENCLATURE

(B) Sheaves in mild steel with ball bearings

(C) Stainless steel pins

(D) Locking device in aluminium alloy

(E) Polyamide protection

(F) Attachment point

屬于個人防護裝備的“ZIP SOSO P978”，是一個由固定法蘭和兩個成一直線的滑輪組成的攀巖滑輪，符合EN12278:2007標準，適合用于制備攀巖滑輪組，并在高架索道上進行移動。

此外，還符合RfU CNB/P/11.104，使得此攀巖滑輪成為一個移動連接裝置，適于用作個人安全系統的一個組成部分，以防止在沿著由EN 15567-1標準定義的繩索攀巖時從高處墜落。

重要事項：ZIP SOSO P978必須與繩索（EN892和EN1891）、輔助繩（EN564）、直徑最大13mm的金屬纜索配合使用。

適用于繩索范圍：≤13mm

EN12278:2007  RfU CNB/P/11.104
